MicroBim-Fire Tools

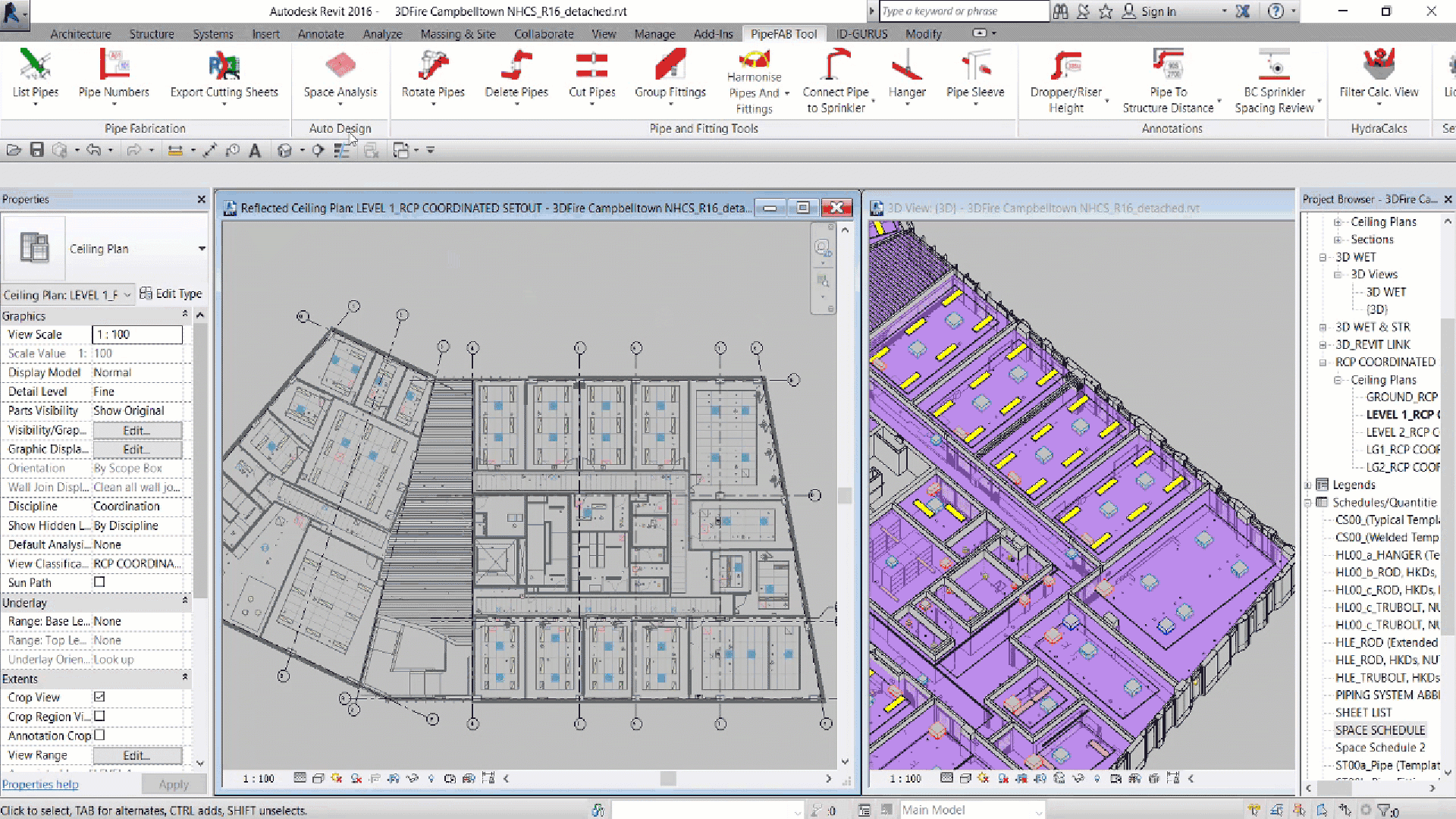

Space Anaylsis

Creates spaces in fire model with the rooms names/numbers as per Architectural Model.

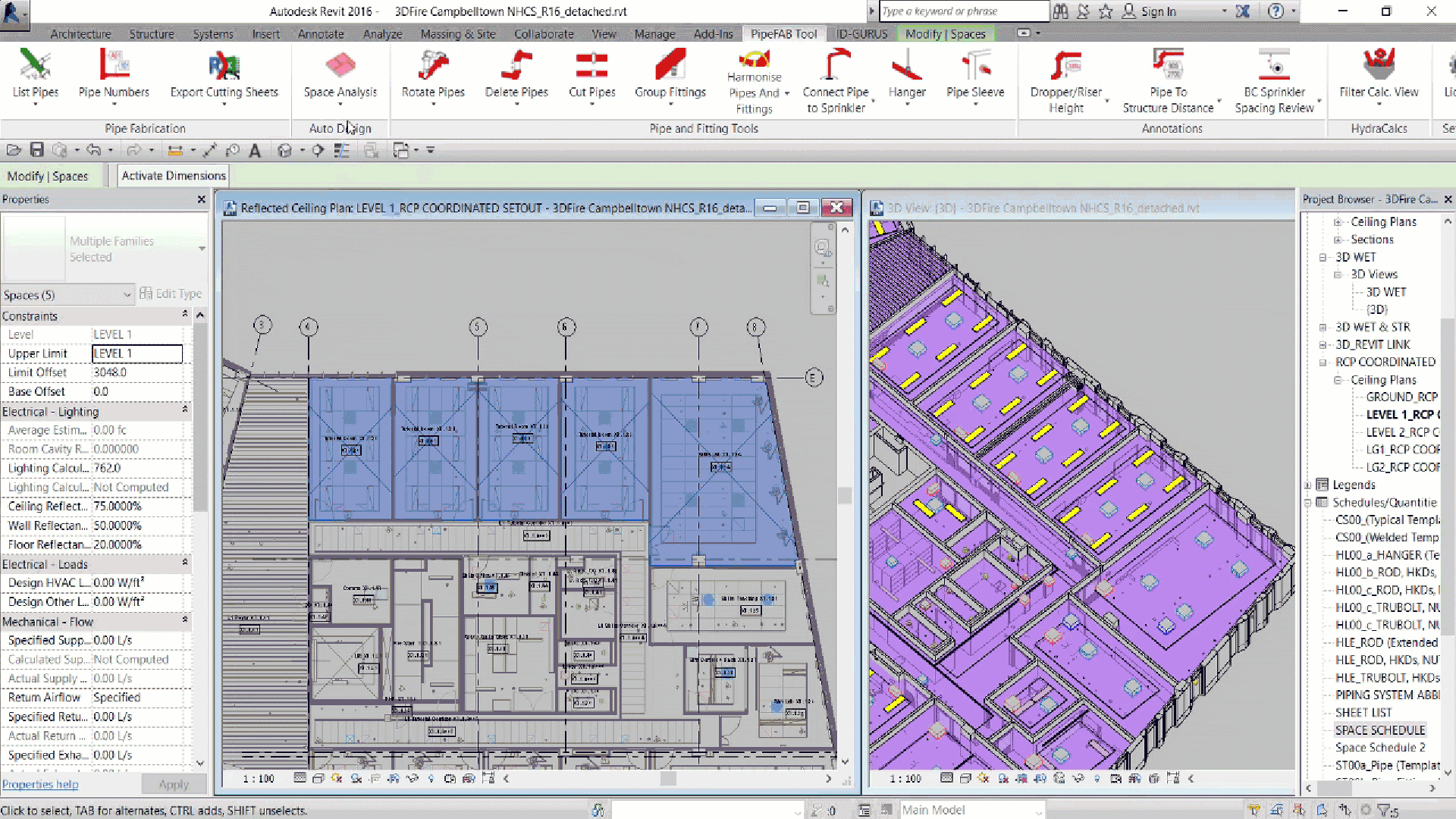

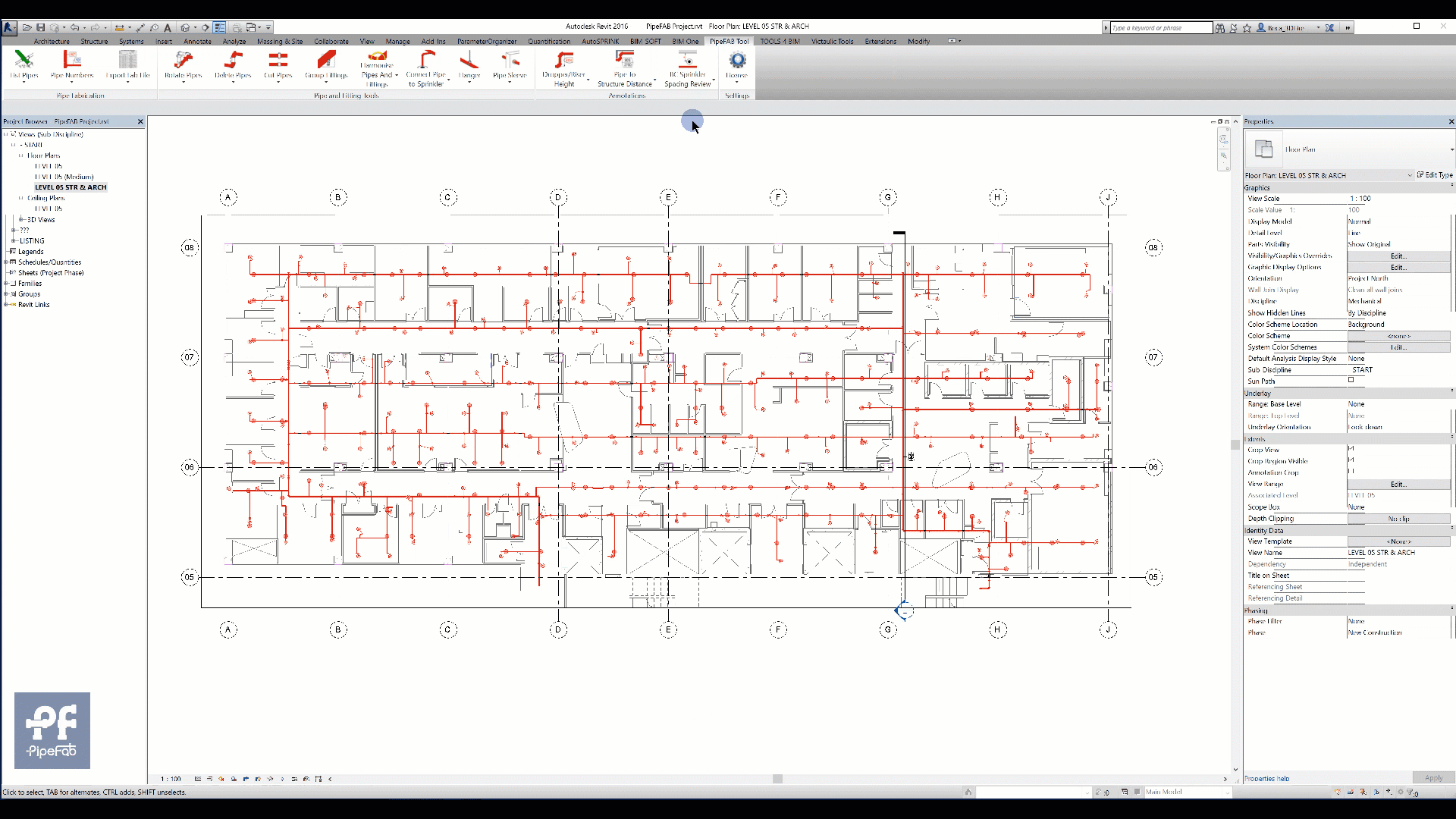

Auto Bc/Exp Spacing

Generates either a Below Celling or an Exposed sprinkler layout by analyzing Achitectural & Structural Revit Models.

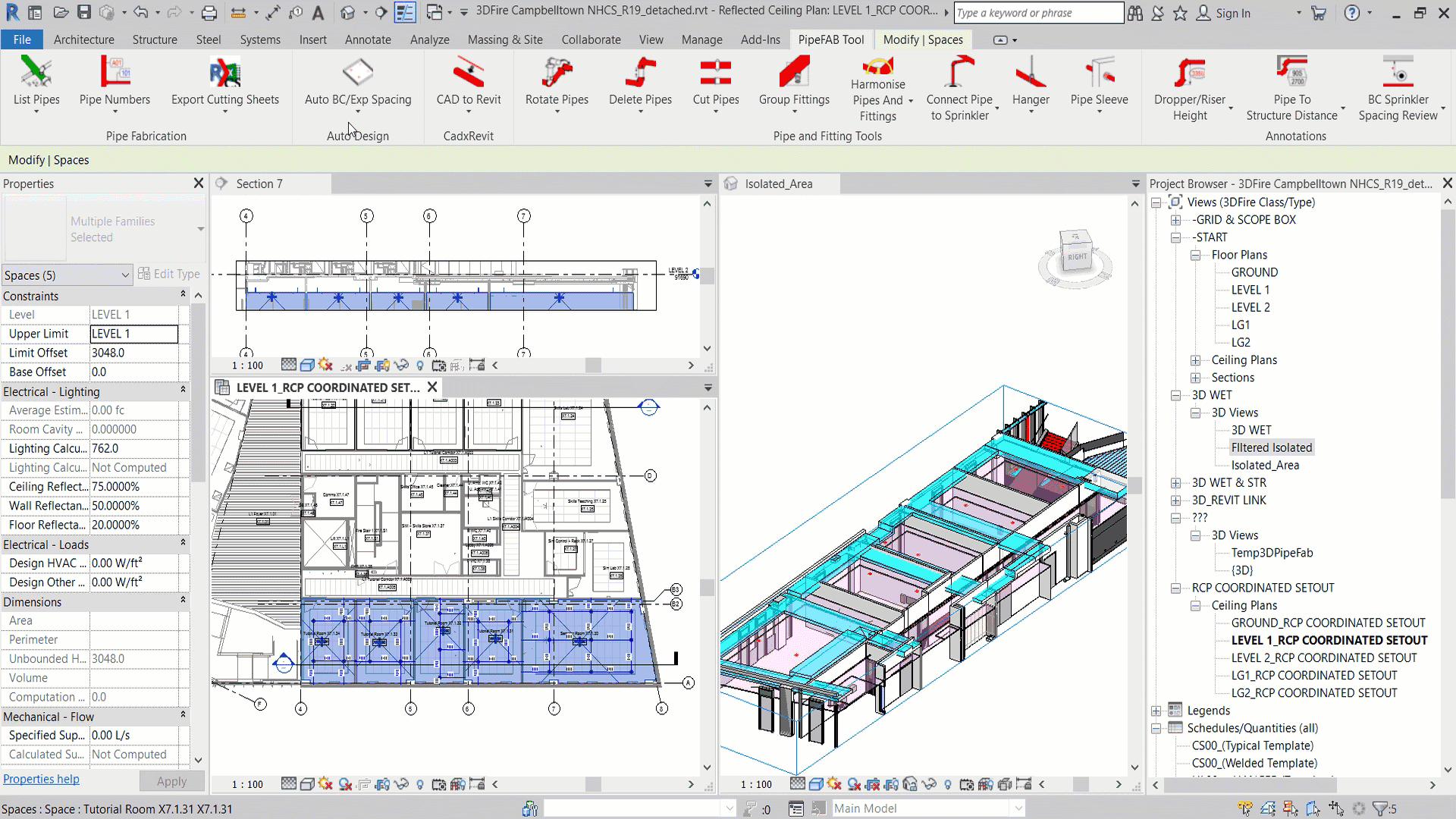

Auto CS Spacing

Generates Concealed space sprinkler layout by analyzing Architectural & Structural Revit Models.

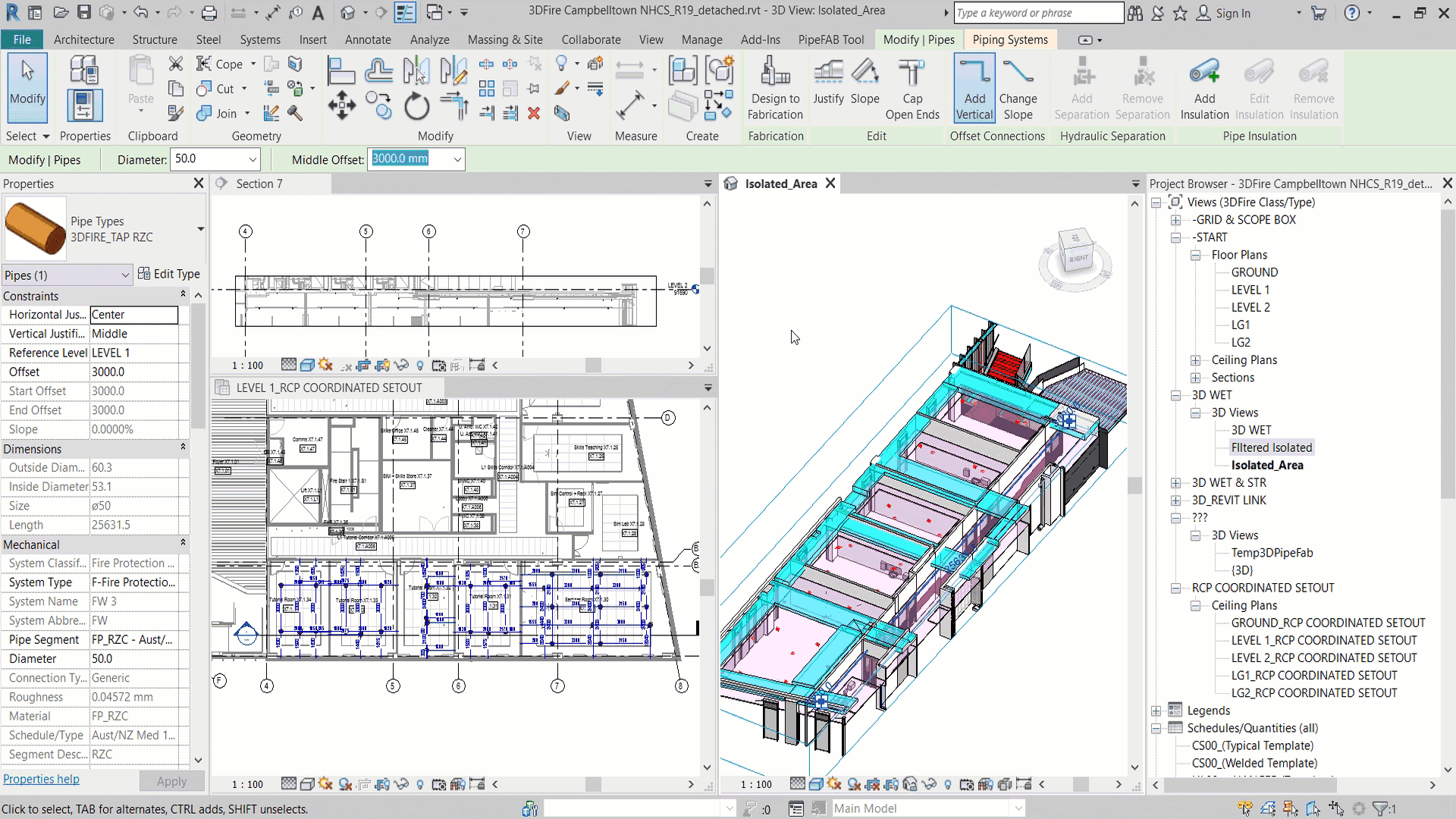

Auto Piping

Automatically connects selected sprinklers to the nearest selected main.

Auto Connector

Connects pipes, fittings and sprinklers.

Rotate Taps

Rotate Taps if Main and Range pipes of same diameter Value.

Tee To Tap

Changes Tee family fitting to tap based on default pap pipe type chosen in MicroBIM Fire settings.

Tap To Tee

Changes Tap family fitting to tee based on default Tee pipe type chosen in MicroBIM Fire settings.

CAD to Revit

Converts a linked Autocad file to Revit Pipe Network, Converts Main lines to Main Pipe based on chosen Main pipe type, Converts Range Lines to Range Pipes based on Chosen Range Pipe type, converts Sprinklers blocks to sprinklers family instances, converts fittings blocks based on chosen fitting types, Recognizes diameter whether they are test , block or fixed number, Recognizes Pipe Heights wheter they are block or fixed number Recognizes Rise and Drops

Rotate Pipes

Rotates Pipes along with fittings.

Delete Pipes

Deletes pipes between two fittings or fittings and sprinklers while keeping the piping system property connected.

Auto Remove Couplings on SH

Automatically removes couplings on Socket Half (SH) when connecting pipes of different sizes.

Cut Pipes

Cuts multiple pipes to desired lengths.

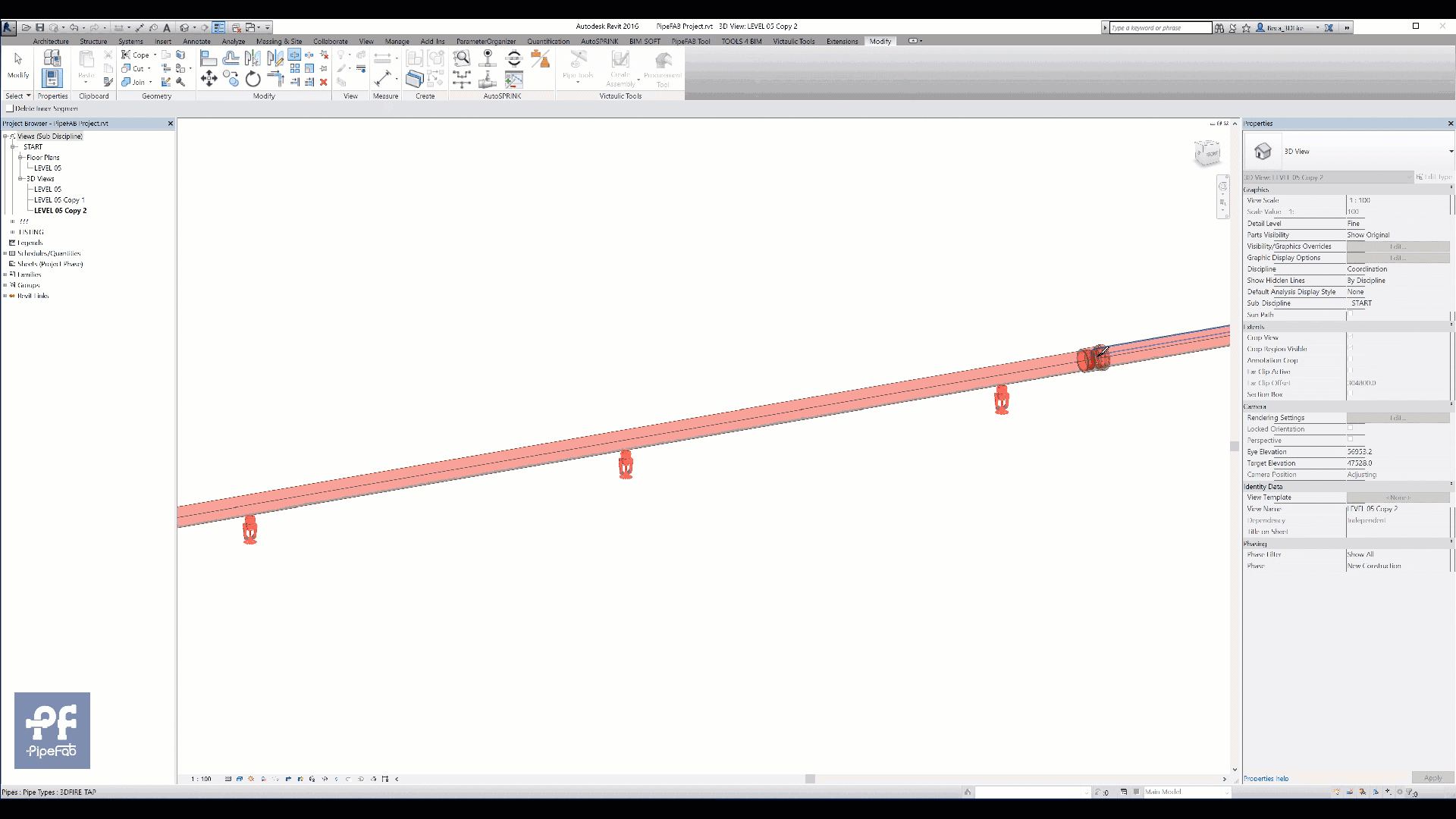

Group Fittings

Groups all fittings on one pipe.

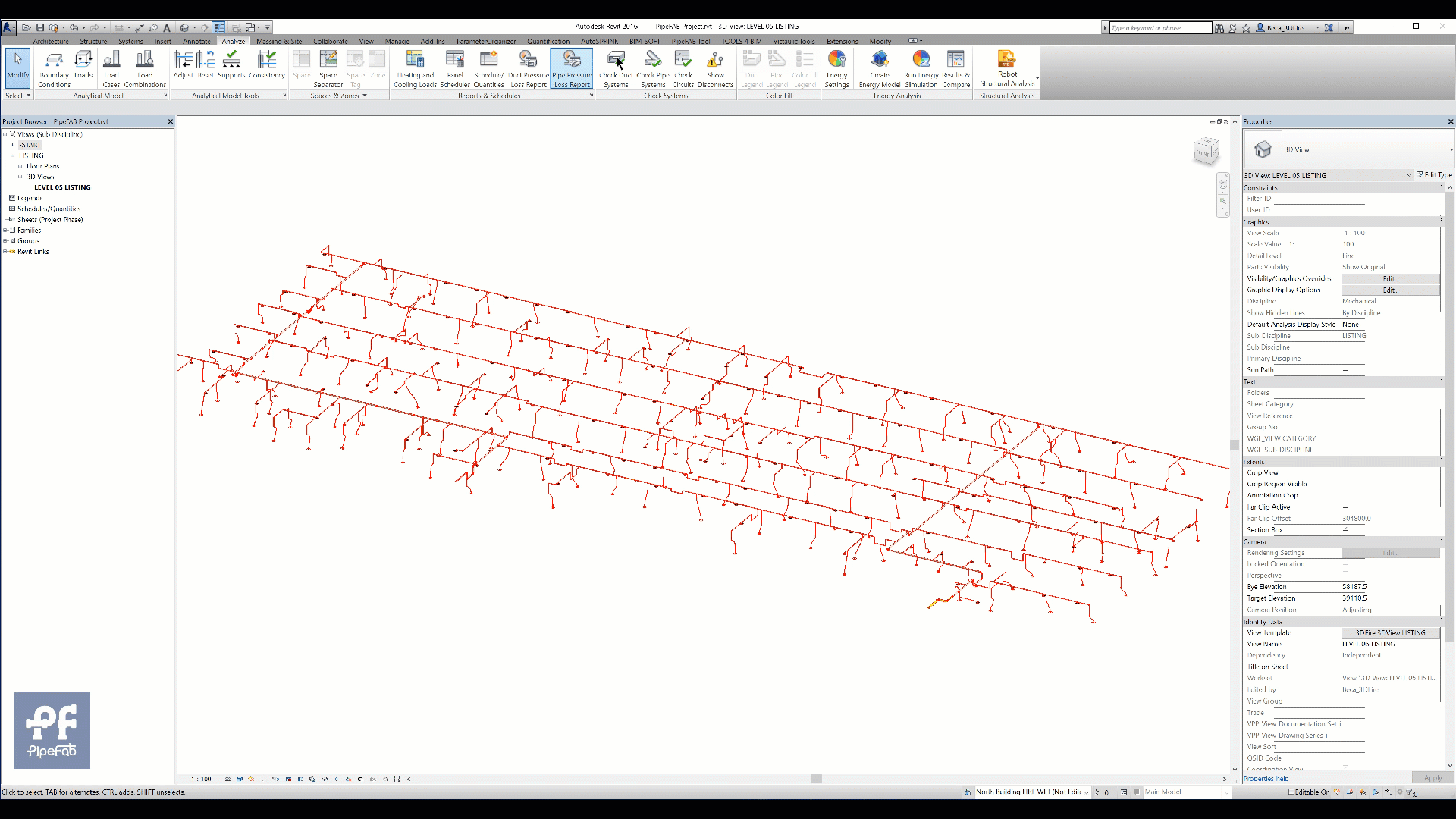

Harmonise Pipes And Fittings

Harmonises pipes and fittings to solve the problem of disconnected elements.

Connect Pipe to Sprinkler

Automatically connects pipe to sprinkler.

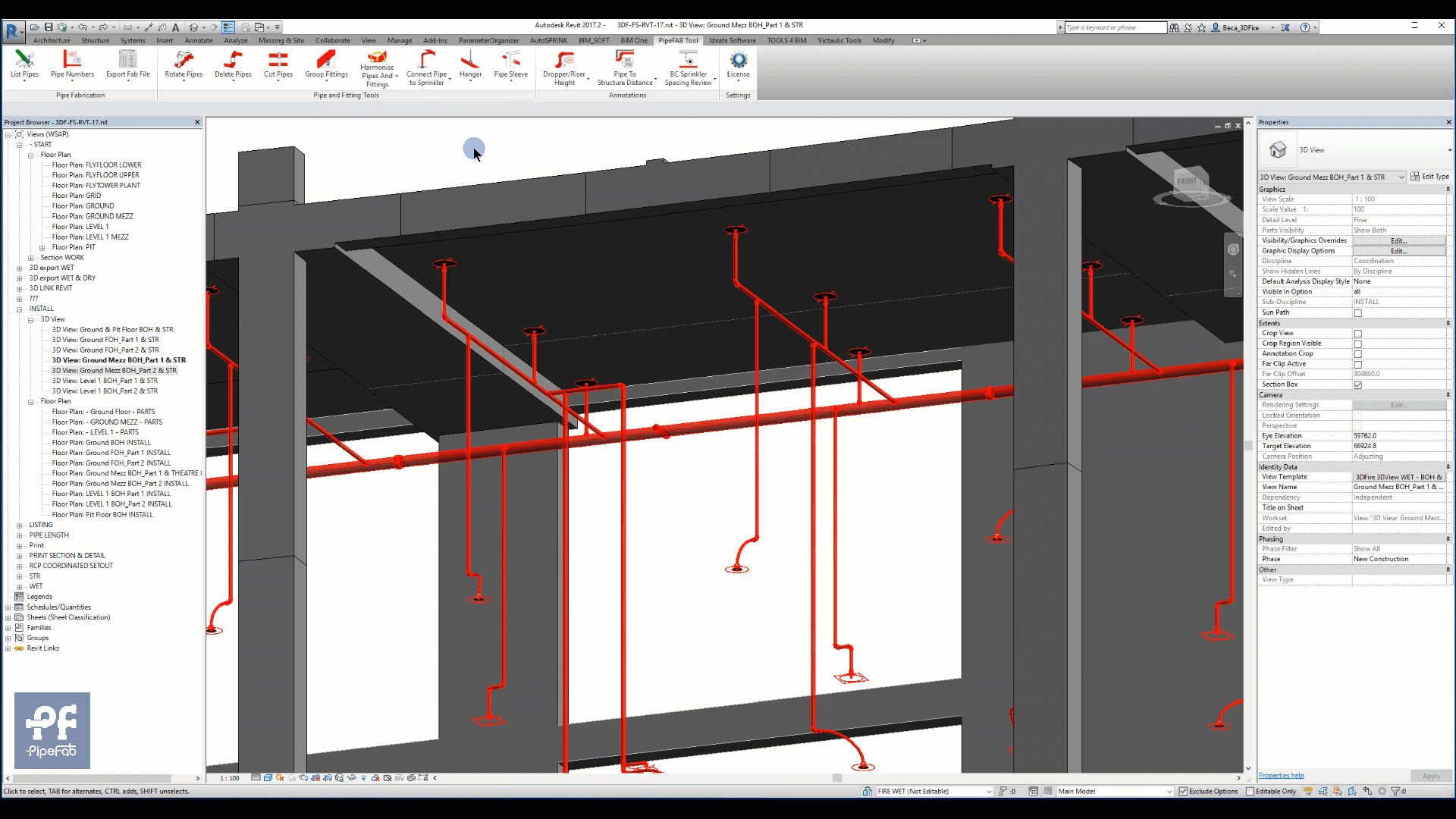

Hangers

Automatically places correct type of Hangers based on the distance from the slab/beam.

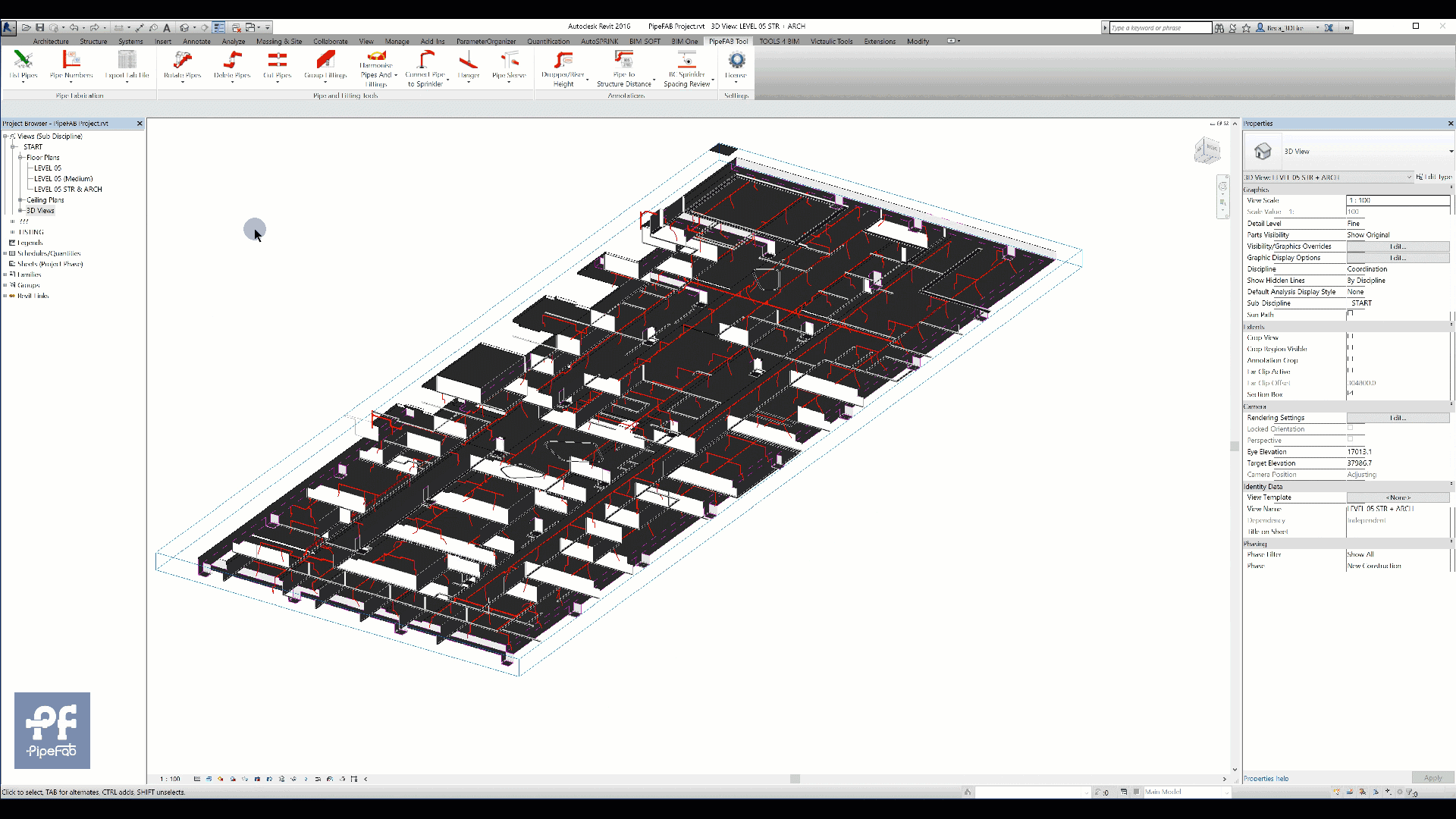

Pipe Sleeve

Automatically places pipe sleeves with penetration dimensions for pipes penetrating walls and slabs.

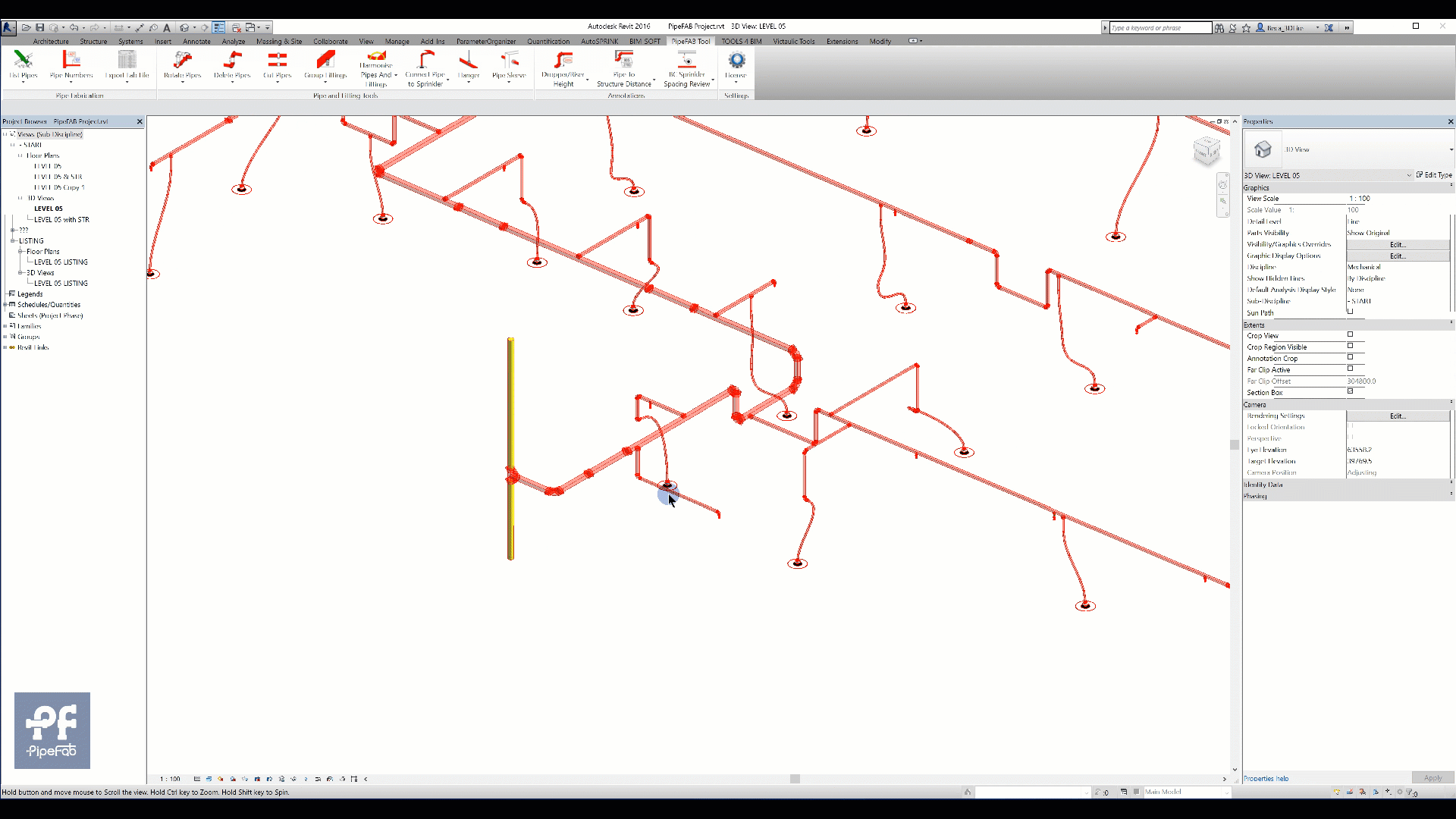

Dropper/Riser Height

Gives the overall length and direction of the pipe (Up or Down)

Pipe To Structure Distance

Automatically tags pipe Distance to structural slabs/beams. provides the useful data for installation drawings and distances to all the structural elements from center of the pipe.
